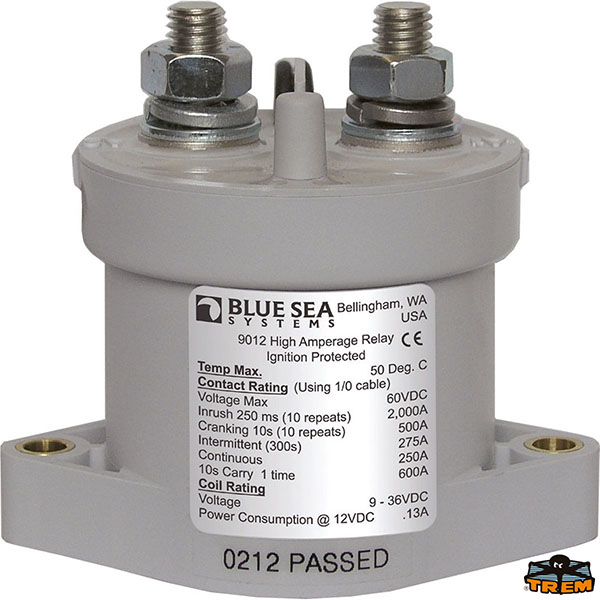

Blue Sea solenoid switch 12-24V
Hermetically sealed contacts. Activated by an ON–OFF switch mounted remotely.
Integrated coil control minimizes heating and amperage draw.
Mount in a dry location.
Integrated coil control minimizes heating and amperage draw.
Mount in a dry location.
| Part number | Base unit/availability | Features | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0909012
1 pz |
1 pz |
Modello 9012B |
Tensione - Voltage CC 12-24V |
Potenza cont - Cont rating 300A |
Potenza 30 sec. - 30 sec. rating 1000A |

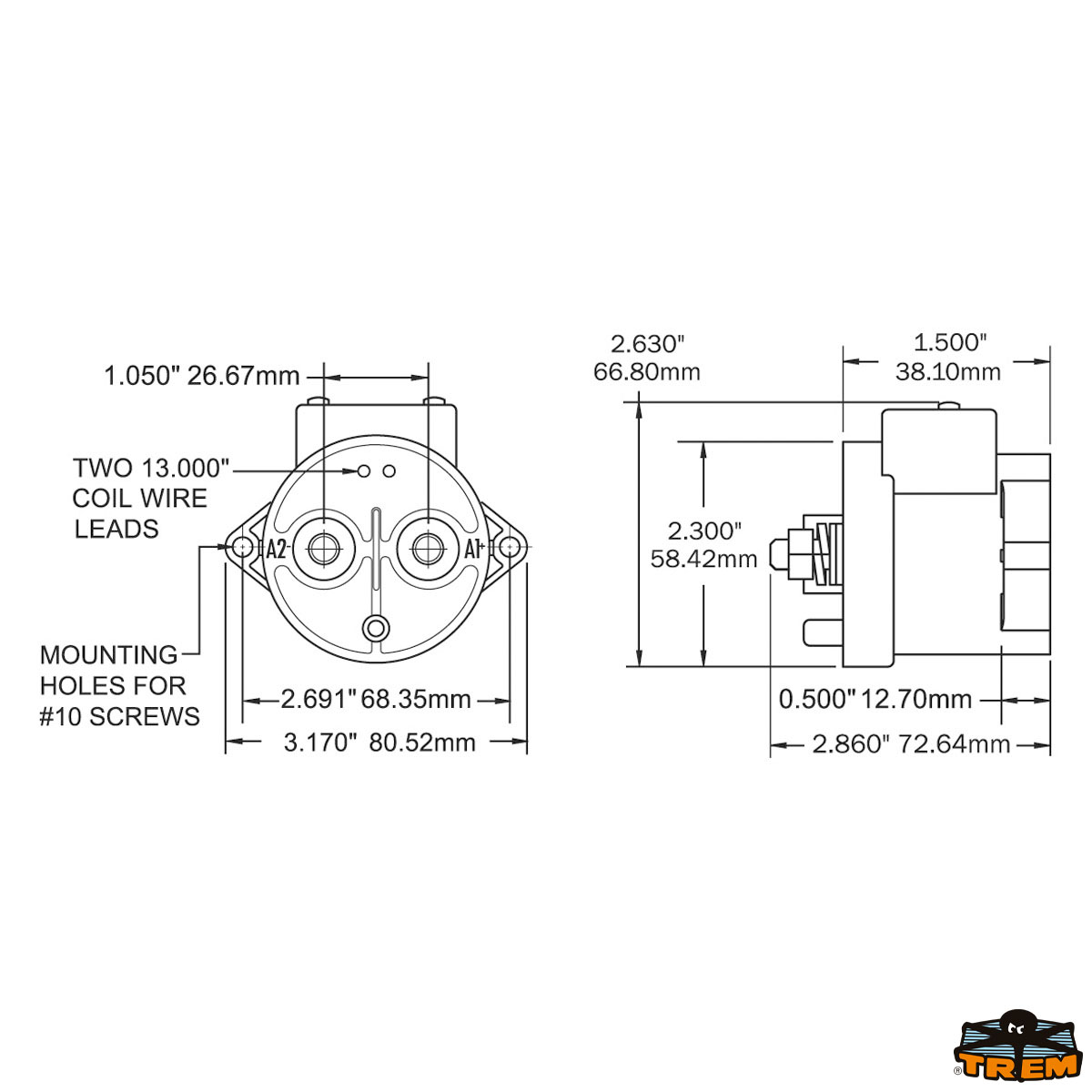

Dimensioni mm 80,52x66,80x72,64 |
Comando bobina - Coil control 2 fili-wires |
Terminali - Terminal size M8 |
Bobina - Coil Isolata |
Materiale involucro - Case material Plastica - Plastic |
Peso Kg 0,450 |
|||||||||||
