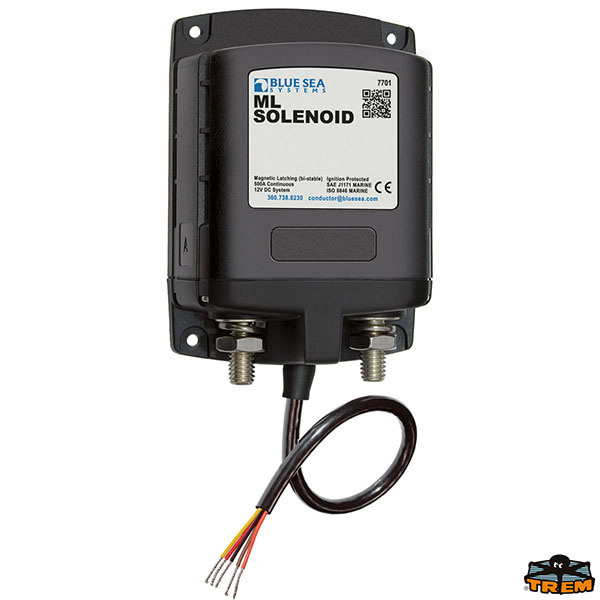

ML-Series solenoid switches
500 Amp magnetic latching (bi-stable) solenoid provides high-amp switching under load where
manual control is not required. LED output to remotely indicate switch state. 3-8”-16 tin-plated copper studs for maximum conductivity and corrosion resistance. Label recesses for circuit identification. Silver alloy contacts provide high reliability for switching live loads.
manual control is not required. LED output to remotely indicate switch state. 3-8”-16 tin-plated copper studs for maximum conductivity and corrosion resistance. Label recesses for circuit identification. Silver alloy contacts provide high reliability for switching live loads.
| Part number | Base unit/availability | Features | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0907701
1 pz |
1 pz |
Modello 7701B |
Tensione V 12V |
Potenza continua 300A |
Sezione perno M10 |
Potenza interm. 5 min 500A |
Potenza 10 sec 2500A |
Comando manuale no |
Comando bobina 2fili-wirless |
Terminali M10 |
Bobina Isolata |
Controllo manuale No |
Peso Kg 0,92 |
|||||||||
